一、Esper简介

将Espser之前，首先要讲CEP，是一种实时事件处理并从大量事件数据流中挖掘复杂模式的技术，全称为Complex Event Processing，即复杂事件处理。CEP是一种标准，Esper只是对这个标准的一种开源实现。

听起来好像很复杂，实际上就是基于事件流进行数据处理，把要分析的数据抽象成事件，然后将数据发送到CEP引擎，引擎就会根据事件的输入和最初注册的处理模型，得到事件处理结果。

CEP的一个重要特点就是他是一个内存计算工具和类SQL语句。

有朋友可能会想到目前很流行的一个实时计算框架——Storm，但这两个完全不是一类东西。Esper的特点在于它的复杂处理逻辑可以用类SQL语句（EPL）开发，而Storm的特点在于并行计算和快速恢复，但是计算逻辑是需要自己用代码实现的。

前面说了，Esper，是CEP的一个开源实现，它是一个Java的事件流处理和复杂事件处理的引擎（.NET为NEsper）。

Esper引擎可应用于如下等领域：

• 网络入侵探测
• SLA监测
• RFID读取
• 航空运输调控
• 金融方面(风险管理，欺诈探测)等

其特点是能够快速开发出复杂的实时计算策略，并且有着高吞吐量以及低延迟的特点，特别适合大量数据的实时计算。

注意：

• 后续所有测试例子中的Java Bean都没有写出getter，setter，toString，如有需要请自行添加。

1.1 EPL 简述

EPL，即Event Proess Language，CEP的类SQL语句，可以理解为处理模型的定义与描述。

这是运行在CEP引擎中的特殊语句，之所以叫他类SQL，是因为它和SQL确实很像，除了select，insert，delete，update，而且也有avg，count等函数。所以对于会SQL的人来说，他的语法结构大致还是能猜出一二的。

工作模式有点类似于一个数据库的 倒置，它允许应用程序存储查询并让数据通过，而不是存储数据并在存储的数据上运行查询语句（应用程序存储查询，并让数据运行通过）。当匹配查询的条件时，响应逻辑触发。

数据库是先存储数据，通过编译解析SQL，完成已存储数据的查询，Esper则是先编译EPL语句，形成一个过滤（或处理）层（或者网），实时过来的数据，通过这个过滤层完成有效事件的筛选或形成有效事件。

如：

select * from Apple
select avg(price) from Apple.win:length_batch(3)

测试代码如下所示：

/**
 * Created by wanzhou on 16/8/1.
 */
import com.espertech.esper.client.*;

class Apple
{
  private int id;
  private int price;
}

class AppleListener implements UpdateListener
{

  public void update(EventBean[] newEvents, EventBean[] oldEvents)
  {
    if (newEvents != null)
    {
//      Double avg = (Double) newEvents[0].get("avg(price)");
//      System.out.println("Apple's average price is " + avg);
      for (int i = 0; i < newEvents.length; i++) {
        System.out.println(newEvents[i].getUnderlying());
      }
    }
  }

}

public class AverageTest {
  public static void main(String[] args) throws InterruptedException {
    EPServiceProvider epService = EPServiceProviderManager.getDefaultProvider();

    EPAdministrator admin = epService.getEPAdministrator();

    EPRuntime runtime = epService.getEPRuntime();

    String product = Apple.class.getName();
    String epl = "select avg(price) from " + product + ".win:length_batch(2)";
	// String epl = "select * from Apple.win:length_batch(2)";

    EPStatement state = admin.createEPL(epl);
    state.addListener(new AppleListener());


    Apple apple1 = new Apple();
    apple1.setId(1);
    apple1.setPrice(5);
    runtime.sendEvent(apple1);

    Apple apple2 = new Apple();
    apple2.setId(2);
    apple2.setPrice(2);
    runtime.sendEvent(apple2);

    Apple apple3 = new Apple();
    apple3.setId(3);
    apple3.setPrice(5);
    runtime.sendEvent(apple3);

    Apple apple4 = new Apple();
    apple4.setId(4);
    apple4.setPrice(6);
    runtime.sendEvent(apple4);

    Apple apple5 = new Apple();
    apple5.setId(5);
    apple5.setPrice(7);
    runtime.sendEvent(apple5);
  }
}

1.2 事件类型

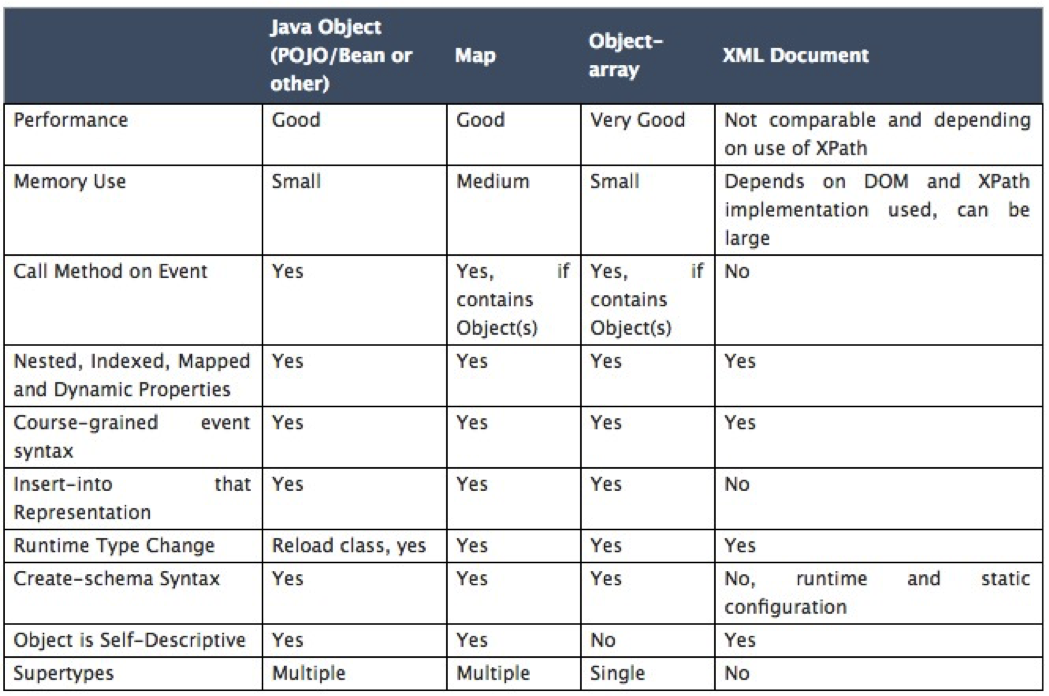

Esper 对处理的数据结构有明确的要求，能处理的数据结构：

• POJO ( java.lang.Object )
• java.util.Map
• Object[]
• XML

特点：

• 支持nested、indexed、mapped属性（嵌套没有层数限制）
• 需要告知引擎类型元数据，包括嵌套的数据。
• 能改变属性顺序，或抽取部分属性到一个新的事件。
• Object、Map 和 Object[] 类型支持超类( Supertype )

1.3 事件属性

| 类型| 说明 | 语法 | 实例| | — | — | — | — | | Simple | 只包含单个值得属性 | name | price | | Indexed | 索引 | name[index] | price[0] | | Mapped | map属性 | name[‘key’] | apple(‘price’) | | nested | 属性嵌套 | name.nestedname | apple.price|

组合上述所有的属性，如：

person.address(‘home’).street[0]

• 事件属性示例

    public class MyEventType {
    String myMapKey;
    int myIndexValue;
    int myInnerIndexValue;
    Map<String, InnerType> innerTypesMap; // mapped property
    InnerType[] innerTypesArray; // indexed property
    }
    public class InnerType {
    String name;
    int[] ids;
    }

    select innerTypesMap('somekey').ids[1],
    // innerTypesMap(myMapKey).getIds(myIndexValue),
    innerTypesArray[1].ids[2],
    // innerTypesArray(myIndexValue).getIds(myInnerIndexValue)
    from MyEventType


1.4 动态事件属性

| 类型 | 语法 | | — | — | | Dynamic Simple | name? | | Dynamic Indexed | name[index]? | | Dynamic Mapped | name(‘key’)? | | Dynamic Nested | name?.nestedname |

select timestamp? from OrderEvent

select detail?.driection from OrderEvent

OrderEvent 拥有多个接口类，其中某个或某些有timestamp属性，则其动态属性

select timestamp? from OrderEvent

如果动态属性是嵌套属性，则

select detail?.driection from OrderEvent 等价于

select detail?.direction? from OrderEvent

• 示例

  动态属性返回值总是 java.lang.Object 类型，在事件进程运行时，动态属性不存在，则返回 null。

  如：事件OrderEvent拥有一个item属性，通过动态属性指定一个查询来取得Service或Product的价格，如：

    select item.price? from OrderEvent


  如果OrderEvent 拥有多个接口类，其中某个或某些有timestamp属性，则其动态属性：

    select timestamp? from OrderEvent


  如果动态属性是嵌套属性，则动态属性下的所有嵌套属性都为动态属性：

    select detail?.driection from OrderEvent   等价于

    select detail?.direction? from OrderEvent


• 测试代码

    class OrderEvent {
      Object item;
    }

    class Serivce {
      String name;
      int price;
    }

    class Product {
      String name;
      int price;
      String info;
    }

    class DynamicListener implements UpdateListener
    {

      public void update(EventBean[] newEvents, EventBean[] oldEvents)
      {
        if (newEvents != null)
        {
    //      Double avg = (Double) newEvents[0].get("item.price?");
    //      System.out.println("Apple's average price is " + avg);
          for (int i = 0; i < newEvents.length; i++) {
            System.out.println(newEvents[i].getUnderlying());
          }
        }
      }

    }

    public class DynamicProps {
      public static void main(String[] args) throws InterruptedException {
        EPServiceProvider epService = EPServiceProviderManager.getDefaultProvider();

        EPAdministrator admin = epService.getEPAdministrator();

        String epl = "select item.info? from OrderEvent";

        EPStatement state = admin.createEPL(epl);
        state.addListener(new AppleListener());

        EPRuntime runtime = epService.getEPRuntime();

        Product product = new Product();
        product.setName("pdt1");
        product.setPrice(5);
        product.setInfo("Product Info.");

        OrderEvent oe1 = new OrderEvent();
        oe1.setItem(product);
        runtime.sendEvent(oe1);

        Serivce svr = new Serivce();
        svr.setName("svr");
        svr.setPrice(10);

        OrderEvent oe2 = new OrderEvent();
        oe2.setItem(svr);
        runtime.sendEvent(oe2);
      }
    }


二、事件类型

2.1 POJO（java.lang.Object）

对于POJO，Esper要求对每一个私有属性要有getter方法。Esper允许不必按照JavaBean规定的格式，但是getter方法是必须的。又或者可以在配置文件中配置可访问的方法来代替getter。

public class Person
{
    String name;
    int age;
    public String getName()
    {
        return name;
    }
    public int getAge()
    {
        return age;
    }
}

Esper对POJO的支持基本上就是上面所说的，另外他还支持实现了多个接口类或者抽象类的POJO，使用方法和普通的POJO没什么区别，这里就不列举了。

当Person的name属性为test时，得到对应的age,所有children和address.

select age,children,address from Person where name="test"  当Person的name属性为test时，得到对应的第二个孩子,家里的电话和家庭住址在哪条路上

select children[1], phones('home'), address.road from Person where name="test”
public Child getChildren(int index) { // 返回对应下标的children信息
	return children.get(index);
}

当Person的name属性为test时，更新家里的电话

update Person set phones('home') = 123456789 where name="test"
public void setPhones(String name, Integer number) {
   phones.put(name, number); // 用于 phones 属性的更新
}

• PojoPersonTest 测试示例：

    class PojoPerson implements Serializable {
      String pname;
      int age;
      List<Child> children;
      Map<String, Integer> phones;
      Address address;

      public String getPname() {
        return pname;
      }

      public void setPname(String pname) {
        this.pname = pname;
      }

      public int getAge() {
        return age;
      }

      public void setAge(int age) {
        this.age = age;
      }

      public List<Child> getChildren() {
        return children;
      }

      public Child getChildren(int index) {
        return children.get(index);
      }

      public void setChildren(List<Child> children) {
        this.children = children;
      }

      public Map<String, Integer> getPhones() {
        return phones;
      }

      public void setPhones(Map<String, Integer> phones) {
        this.phones = phones;
      }

      public void setPhones(String name, Integer number) {
        System.out.println("=======");
        phones.put(name, number);
      }

      public Address getAddress() {
        return address;
      }

      public void setAddress(Address address) {
        this.address = address;
      }

      @Override
      public String toString() {
        return "PojoPerson{" +
            "name='" + pname + '\'' +
            ", age=" + age +
            ", children=" + children +
            ", phones=" + phones +
            ", address=" + address +
            '}';
      }
    }

    class Child
    {
      String cname;
      int gender;

      public String getCname() {
        return cname;
      }

      public void setCname(String cname) {
        this.cname = cname;
      }

      public int getGender() {
        return gender;
      }

      @Override
      public String toString() {
        return "Child{" +
            "name='" + cname + '\'' +
            ", gender=" + gender +
            '}';
      }

      public void setGender(int gender) {
        this.gender = gender;
      }
    }

    class Address
    {
      String road;
      String street;
      int houseNo;

      public String getRoad() {
        return road;
      }

      public void setRoad(String road) {
        this.road = road;
      }

      public String getStreet() {
        return street;
      }

      public void setStreet(String street) {
        this.street = street;
      }

      public int getHouseNo() {
        return houseNo;
      }

      public void setHouseNo(int houseNo) {
        this.houseNo = houseNo;
      }

      @Override
      public String toString() {
        return "Address{" +
            "road='" + road + '\'' +
            ", street='" + street + '\'' +
            ", houseNo=" + houseNo +
            '}';
      }
    }


    public class PojoPersonTest {
      public static void main(String[] args) {

        EPServiceProvider epService = EPServiceProviderManager.getDefaultProvider();
        EPAdministrator admin = epService.getEPAdministrator();
        EPRuntime runtime = epService.getEPRuntime();

        String qry1 = "select age,children,address from PojoPerson where pname = \"张三\"";
        String qry2 = "select children[1], phones('home'), address.road from PojoPerson where pname=\"李四\"";
        String qry = "select * from PojoPerson";

        EPStatement state1 = admin.createEPL(qry1);
        state1.addListener(new UpdateListener() {
          public void update(EventBean[] newEvents, EventBean[] oldEvents) {
            if (null != newEvents) {
              System.out.print("qry1=====  ");
              System.out.println(newEvents[0].getUnderlying());
            }
          }
        });

        EPStatement state2 = admin.createEPL(qry2);
        state2.addListener(new UpdateListener() {
          public void update(EventBean[] newEvents, EventBean[] oldEvents) {
            if (null != newEvents) {
              System.out.print("qry2+++++  ");
              System.out.println(newEvents[0].getUnderlying());
            }
          }
        });


        EPStatement state = admin.createEPL(qry);
        state.addListener(new UpdateListener() {
          public void update(EventBean[] newEvents, EventBean[] oldEvents) {
            if (null != newEvents) {
              System.out.print("qry----  ");
              for (int i = 0; i < newEvents.length; i++) {
                System.out.println(newEvents[i].getUnderlying());
              }
            }
          }
        });

        PojoPerson pp1 = new PojoPerson();
        Address a1 = new Address();
        a1.setHouseNo(100);
        a1.setRoad("Address 1");
        a1.setStreet("Street 1");
        pp1.setAddress(a1);
        pp1.setPname("张三");
        pp1.setAge(30);
        Map<String, Integer> p1 = new HashMap<String, Integer>();
        p1.put("home", 1333333333);
        p1.put("work", 1333333334);
        pp1.setPhones(p1);
        List<Child> lc1 = new ArrayList<Child>();
        Child ch1 = new Child();
        ch1.setCname("张四");
        ch1.setGender(1);
        lc1.add(ch1);
        pp1.setChildren(lc1);
        runtime.sendEvent(pp1);

        PojoPerson pp2 = new PojoPerson();
        Address a2 = new Address();
        a2.setHouseNo(100);
        a2.setRoad("Address 1");
        a2.setStreet("Street 1");
        pp2.setAddress(a2);
        pp2.setPname("李四");
        pp2.setAge(30);
        Map<String, Integer> p2 = new HashMap<String, Integer>();
        p2.put("home", 1444444444);
        p2.put("work", 1444444445);
        pp2.setPhones(p2);
        List<Child> lc2 = new ArrayList<Child>();
        Child ch21 = new Child();
        ch21.setCname("李五");
        ch21.setGender(1);
        lc2.add(ch21);
        Child ch22 = new Child();
        ch22.setCname("李六");
        ch22.setGender(0);
        lc2.add(ch22);
        pp2.setChildren(lc2);
        runtime.sendEvent(pp2);

        PojoPerson pp3 = new PojoPerson();
        Address a3 = new Address();
        a3.setHouseNo(100);
        a3.setRoad("Address 1");
        a3.setStreet("Street 1");
        pp3.setAddress(a3);
        pp3.setPname("test");
        pp3.setAge(30);
        Map<String, Integer> p3 = new HashMap<String, Integer>();
        p3.put("home", 1555555555);
        p3.put("work", 1555555556);
        pp3.setPhones(p3);
        List<Child> lc3 = new ArrayList<Child>();
        Child ch31 = new Child();
        ch31.setCname("王六");
        ch31.setGender(1);
        lc3.add(ch31);
        pp3.setChildren(lc3);

        runtime.sendEvent(pp3);
      }
    }


• UpdateTest 测试代码

    public class UpdateTest {
      public static void main(String[] args) {

        EPServiceProvider epService = EPServiceProviderManager.getDefaultProvider();
        EPAdministrator admin = epService.getEPAdministrator();
        EPRuntime runtime = epService.getEPRuntime();

        String ctr = "create window UPerson.win:keepall() as Person";
        String update = "on Person as p1 update UPerson as p2 set p2.age = 40 where p2.name = 'test'";
    //    String update = "update Person set age = 40 where name = 'test'";
        String qry = "select * from Person";


        admin.createEPL(ctr);
        admin.createEPL("insert into UPerson select * from Person");
        EPStatement state3 = admin.createEPL(update);
        state3.addListener(new UpdateListener() {
          public void update(EventBean[] newEvents, EventBean[] oldEvents) {
            if (null != newEvents) {
              System.out.print("update==>  ");
              for (int i = 0; i < newEvents.length; i++) {
                System.out.println(newEvents[i].getUnderlying());
              }
            }
          }
        });

        EPStatement state = admin.createEPL(qry);
        state.addListener(new UpdateListener() {
          public void update(EventBean[] newEvents, EventBean[] oldEvents) {
            if (null != newEvents) {
              System.out.print("qry==>  ");
              for (int i = 0; i < newEvents.length; i++) {
                System.out.println(newEvents[i].getUnderlying());
              }
            }
          }
        });

        Person p1 = new Person();
        p1.setName("test");
        p1.setAge(22);
        runtime.sendEvent(p1);

        Person p2 = new Person();
        p2.setName("test2");
        p2.setAge(23);
        runtime.sendEvent(p2);

      }
    }


2.2 java.util.Map

Esper支持原生Java Map结构的事件。相对于POJO来说，Map的结构更利于事件类型的热加载，毕竟不是class，所以不需要重启JVM。

所以如果系统对重启比较敏感，建议使用Map来定义事件的结构。Map的结构很简单，主要分为事件定义名和事件属性列表。

通过 sendEvent(Map map, String eventTypeName) 方法发送事件。

对于Map，Esper只支持增量更新，也就是说只能增加Map中的属性定义，而不能修改或者删除某个属性。

实际上属性增多并不影响其处理性能，所以没有删除在我看来也没什么。至于修改，也只能是先注销再注册了。

• 定义

    // Person定义
    Map<String,Object> person = new HashMap<String,Object>();
    person.put("name", String.class);
    person.put("age", int.class);
    person.put("children", List.class);
    person.put("phones", Map.class);

    // 注册Person到Esper
    admin.getConfiguration().addEventType("PersonEvent", person);

    select name, age, phones from PersonEvent.win:time(1 min) where age = 20


• java.util.Map发送

    Map<String, Object> p1 = new HashMap<String, Object>();
    p1.put("name", "test");
    p1.put("age", 20);
    List<Person> child = new ArrayList<Person>();
    p1.put("children", child);

    Map<String, Object> phones = new HashMap<String, Object>();
    phones.put("home", "051088744796");
    phones.put("self", "15051818371");
    p1.put("phones", phones);

    epService.getEPRuntime().sendEvent(p1, "PersonEvent");

    select name, age, phones from PersonEvent.win:time(1 min) where age = 20

    {name=test, phones={self=15051818371, home=051088744796}, age=20}


• PersonMap 示例

    class Person implements Serializable
    {
      String name;
      int age;

      public String getName() {
        return name;
      }

      public void setName(String name) {
        this.name = name;
      }

      public int getAge() {
        return age;
      }

      public void setAge(int age) {
        this.age = age;
      }

      @Override
      public String toString() {
        return "Person{" +
            "name='" + name + '\'' +
            ", age=" + age +
            '}';
      }
    }

    class PersonMapListener implements UpdateListener
    {

      public void update(EventBean[] newEvents, EventBean[] oldEvents)
      {
        if (newEvents != null)
        {
          for (int i = 0; i < newEvents.length; i++) {
            System.out.println(newEvents[i].getUnderlying());
          }
        }
      }

    }

    public class PersonMap {
      public static void main(String[] args) throws InterruptedException {
        EPServiceProvider epService = EPServiceProviderManager.getDefaultProvider();

        EPAdministrator admin = epService.getEPAdministrator();

        // Person 定义
        Map<String, Object> person = new HashMap<String, Object>();
        person.put("name", String.class);
        person.put("age", int.class);
        person.put("children", List.class);
        person.put("phones", Map.class);

        // 注册Person到Esper
        admin.getConfiguration().addEventType("PersonEvent", person);

        String epl = "select name, age, phones from PersonEvent.win:time(1 min) where age = 20";
        EPStatement state = admin.createEPL(epl);
        state.addListener(new PersonMapListener());

        EPRuntime runtime = epService.getEPRuntime();

        Map<String, Object> p1 = new HashMap<String, Object>();
        p1.put("name", "test");
        p1.put("age", 20);

        List<Person> child = new ArrayList<Person>();
        Person pc1 = new Person();
        pc1.setName("Child1");
        pc1.setAge(20);
        child.add(pc1);
        p1.put("children", child);

        Map<String, Object> phones = new HashMap<String, Object>();
        phones.put("home", "051088744796");
        phones.put("self", "15051818371");
        p1.put("phones", phones);

        runtime.sendEvent(p1, "PersonEvent");

        // 新增一个gender属性
    //    person.put("gender", int.class);
    //    admin.getConfiguration().updateMapEventType("PersonEvent", person);
      }
    }


2.2.1 java.util.Map超类(Supertype)

epService.getEPAdministrator().getConfiguration().addEventType(
	"AccountUpdate", accountUpdateDef, new String[] {"BaseUpdate"}
);

当继承之后，对超类进行select时，不管是子类、或超类事件到达，都会进行查询输出。

select * from BaseUpdate

每个Map 事件可以有多个超类！

2.2.2 Map 嵌套

Map<String, Object> updatedFieldDef = new HashMap<String, Object>();
updatedFieldDef.put("name", String.class);
updatedFieldDef.put("addressLine1", String.class);
updatedFieldDef.put("history", UpdateHistory.class);
epService.getEPAdministrator().getConfiguration().
addEventType("UpdatedFieldType", updatedFieldDef);

Map<String, Object> accountUpdateDef = new HashMap<String, Object>();
accountUpdateDef.put("accountId", long.class);
accountUpdateDef.put("fields", "UpdatedFieldType");
// the latter can also be:  accountUpdateDef.put("fields", updatedFieldDef);

epService.getEPAdministrator().getConfiguration().
addEventType("AccountUpdate", accountUpdateDef);

Map<String, Object> updatedField = new HashMap<String, Object>();
updatedField.put("name", "Joe Doe");
updatedField.put("addressLine1", "40 Popular Street");
updatedField.put("history", new UpdateHistory());

Map<String, Object> accountUpdate = new HashMap<String, Object>();
accountUpdate.put("accountId", 10009901);
accountUpdate.put("fields", updatedField);

epService.getEPRuntime().sendEvent(accountUpdate, "AccountUpdate");


select accountId, fields.name, fields.addressLine1, fields.history.lastUpdate
from AccountUpdate

2.2.3 Map 数组

Map<String, Object> sale = new HashMap<String, Object>();
sale.put("userids", int[].class);
sale.put("salesPersons", SalesPerson[].class);
sale.put("items", "OrderItem[]");	 // The property type is the name itself appended by []

epService.getEPAdministrator().getConfiguration().
    addEventType("SaleEvent", sale);

查询语句：

select userids[0], salesPersons[1].name,
items[1], items[1].price.amount from SaleEvent

2.3 Object Array

Object 数组跟Map类似，只是定义的方式有些区别，同时也只支持增量更新。

String[] propertyNames = {"carId", "direction"};   // order is important
Object[] propertyTypes = {String.class, int.class};  // type order matches name order

epService.getEPAdministrator().getConfiguration().
  addEventType("CarLocUpdateEvent", propertyNames, propertyTypes);

epRuntime.sendEvent(new Object[]{carId, direction}, “CarLocUpdateEvent”);

• 查询语句：

    select carId from CarLocUpdateEvent .win:time(1 min) where direction = 1


• 增量更新：

    admin.getConfiguration().updateObjectArrayEventType("Person", new String[] { "gender" }, new Object[] { int.class });


• ObjectArray 实例：

    class CommonUpdateListener implements UpdateListener {

      public void update(EventBean[] newEvents, EventBean[] oldEvents) {
        if (null != newEvents) {
          System.out.print("common update method:  ");
          for (int i = 0; i < newEvents.length; i++) {
            System.out.println(newEvents[i].getUnderlying());
          }
        }
      }
    }

    public class ObjectArray {

      /**
       * @param args
       */
      public static void main(String[] args)
      {
        EPServiceProvider epService = EPServiceProviderManager.getDefaultProvider();
        EPAdministrator admin = epService.getEPAdministrator();
        EPRuntime runtime = epService.getEPRuntime();

        // Address定义
        String[] addressPropNames = { "road", "street", "houseNo" };
        Object[] addressPropTypes = { String.class, String.class, int.class };

        // Child定义
        String[] childPropNames = { "name", "age" };
        Object[] childPropTypes = { String.class, int.class };

        // Person定义
        String[] personPropNames = { "name", "age", "children", "phones", "address" };
        Object[] personPropTypes = { String.class, int.class, "Child[]", Map.class, "Address" };

        // 注册Address到Esper
        admin.getConfiguration().addEventType("Address", addressPropNames, addressPropTypes);
        // 注册Child到Esper
        admin.getConfiguration().addEventType("Child", childPropNames, childPropTypes);
        // 注册Person到Esper
        admin.getConfiguration().addEventType("Person", personPropNames, personPropTypes);

        // 新增一个gender属性
        admin.getConfiguration().updateObjectArrayEventType("Person", new String[] { "gender" }, new Object[] { int.class });

        /** 输出结果：
         * Person props: [name, age, children, phones, address, gender]
         */
        EventType event = admin.getConfiguration().getEventType("Person");
        System.out.println("Person props: " + Arrays.asList(event.getPropertyNames()));

        String epl = "select name, age, phones, address.road, address.street, address.houseNo, children[0].name from Person";
        EPStatement state = admin.createEPL(epl);
        state.addListener(new CommonUpdateListener());

        Object[] addr = {"road1", "street1", 1};
        Object[][] child = child;

        Map<String, Object> phones = new HashMap<String, Object>();
        phones.put("home", "051088744796");
        phones.put("self", "15051818371");

        Object[] person = {"person", 30, child, phones, addr};

        runtime.sendEvent(person, "Person");
      }
    }


2.3.1 Object Array 超类（Supertype）

Object[] 可以在引擎初始化、或运行时通过administrator接口，定义一个超类。

超类必须也是Object[] 事件，且所有的属性会对子类可见，同名属性将会被覆盖。定义于超类上的EPL查询语法，子类亦会触发。

定义：

create objectarray schema SuperType (p0 String)
create objectarray schema SubType (p1 String, p2 String) inherits SuperType

发送：

epRuntime.sendEvent(new Object[] {"p0_value", "p1_value"}, "SubType");
epRuntime.sendEvent(new Object[] {"p0_value"}, "SuperType");

2.3.2 Object Array（嵌套属性）

String[] propertyNamesUpdField = {"name", "addressLine1", "history"};
Object[] propertyTypesUpdField = {String.class, String.class, UpdateHistory.class};
epService.getEPAdministrator().getConfiguration().
addEventType("UpdatedFieldType", propertyNamesUpdField, propertyTypesUpdField);

String[] propertyNamesAccountUpdate = {"accountId", "fields"};
Object[] propertyTypesAccountUpdate = {long.class, "UpdatedFieldType"};
epService.getEPAdministrator().getConfiguration().
addEventType("AccountUpdate", propertyNamesAccountUpdate, propertyTypesAccountUpdate);

Object[] updatedField = {"Joe Doe", "40 Popular Street", new UpdateHistory()};
Object[] accountUpdate = {10009901, updatedField};
epService.getEPRuntime().sendEvent(accountUpdate, "AccountUpdate");

select accountId, fields.name, fields.addressLine1, fields.history.lastUpdate
from AccountUpdate

2.3.3 Object Array（一对多属性）

String[] propertyNames = {"userids", "salesPersons", "items"};
Object[] propertyTypes = {int[].class, SalesPerson[].class, "OrderItem[]");

epService.getEPAdministrator().getConfiguration().addEventType("SaleEvent", propertyNames, propertyTypes);

查询语句：

select userids[0], salesPersons[1].name,
	items[1], items[1].price.amount from SaleEvent

2.4 XML

• ParseXmlSchema 示例

    class ParseXMLListener implements UpdateListener
    {

      public void update(EventBean[] newEvents, EventBean[] oldEvents)
      {
        if (newEvents != null)
        {
          for (int i = 0; i < newEvents.length; i++) {
            System.out.println(newEvents[i].getUnderlying());
          }
        }
      }

    }

    public class ParseXmlSchema {
      public static void main(String[] args) throws InterruptedException, IOException, ParserConfigurationException, SAXException {
        String xml = "<?xml version=\"1.0\" encoding=\"UTF-8\"?>" +
            "<Sensor xmlns=\"SensorSchema\">" +
            "  <ID>urn:epc:1:4.16.36</ID>" +
            "  <Observation Command=\"READ_PALLET_TAGS_ONLY\">" +
            "    <ID>00000001</ID>" +
            "    <Tag>" +
            "      <ID>urn:epc:1:2.24.400</ID>" +
            "    </Tag>" +
            "    <Tag>" +
            "      <ID>urn:epc:1:2.24.401</ID>" +
            "    </Tag>" +
            "  </Observation>" +
            "</Sensor>";
        URL schemaURL = ParseXmlSchema.class.getResource("sensor.xsd");
        EPServiceProvider epService = EPServiceProviderManager.getDefaultProvider();

        EPAdministrator admin = epService.getEPAdministrator();
        epService = EPServiceProviderManager.getDefaultProvider();
        ConfigurationEventTypeXMLDOM sensorcfg = new ConfigurationEventTypeXMLDOM();
        sensorcfg.setRootElementName("Sensor");
        sensorcfg.setSchemaResource(schemaURL.toString());
        epService.getEPAdministrator().getConfiguration()
            .addEventType("SensorEvent", sensorcfg);

        String epl = "select ID, Observation.Command, Observation.ID, Observation.Tag[0].ID, Observation.Tag[1].ID from SensorEvent";
        EPStatement state = admin.createEPL(epl);
        state.addListener(new ParseXMLListener());

        InputSource source = new InputSource(new StringReader(xml));
        DocumentBuilderFactory builderFactory = DocumentBuilderFactory.newInstance();
        builderFactory.setNamespaceAware(true);
        Document doc = builderFactory.newDocumentBuilder().parse(source);

        epService.getEPRuntime().sendEvent(doc);
      }
    }


• 对应的schema文件

    <?xml version="1.0" encoding="UTF-8"?>
    <xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema">

      <xs:element name="Sensor">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="ID" type="xs:string"/>
            <xs:element ref="Observation" />
          </xs:sequence>
        </xs:complexType>
      </xs:element>

      <xs:element name="Observation">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="ID" type="xs:string"/>
            <xs:element ref="Tag" maxOccurs="unbounded" />
          </xs:sequence>
          <xs:attribute name="Command" type="xs:string" use="required" />
        </xs:complexType>
      </xs:element>

      <xs:element name="Tag">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="ID" type="xs:string"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:schema>


2.5 事件类型对比

三、处理模型

Esper 进程模型是连续不间断的：根据event stream、views、filters和output rates的语句选择范围，

UpdaterListener是Esper提供的一个接口，用于监听某个EPL在引擎中的运行情况，即事件进入并产生结果后会通知UpdateListener。

package com.espertech.esper.client;

import com.espertech.esper.client.EventBean;

public interface UpdateListener
{
    public void update(EventBean[] newEvents, EventBean[] oldEvents);
}

Esper是怎么处理事件的，即Esper的进程模型。

一个update方法，其中包括两个EventBean数组。EventBean中有一个最常用的get方法，是用来得到EPL中某个字段的值。

select name from User
//假设newEvents长度为一

newEvents[0].get("name")能得到进入的User事件的name属性值。

select count(*) from User.win:time(5 sec)
//假设newEvents长度为一

newEvents[0].get("count(*))能得到5秒内进入引擎的User事件数量有多少。

3.1 Insert And Remove Stream

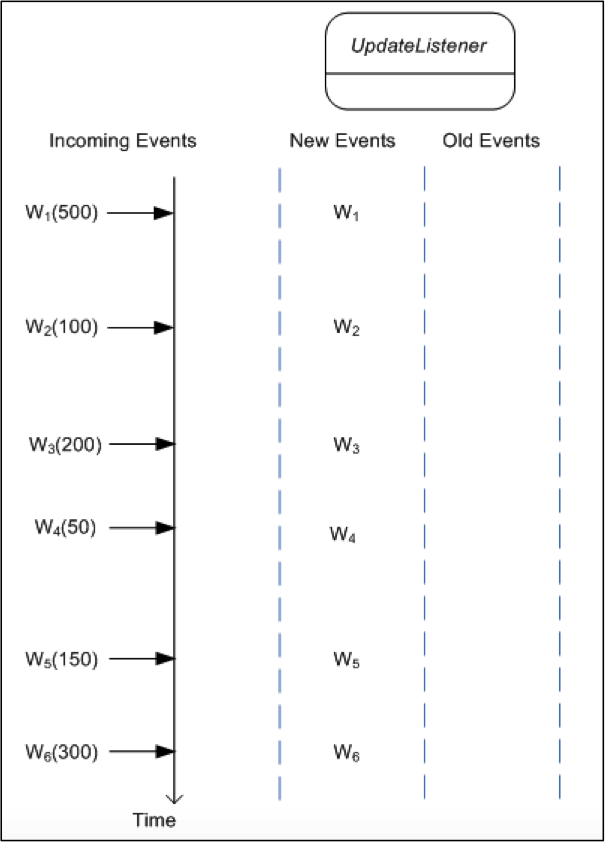

• IR Stream



  从此图可以看出，随着时间推移，每个进入到引擎的W事件都是newEvents，即Insert Stream。W后括号里的值为属性值，可忽略。

  Insert表示事件进入引擎，Remove Stream表示移出引擎，对应于UpdateListener中的 newEvents 和 oldEvents。

    select * from Withdrawal


  每当引擎处理一个 Withdrawal 或 Withdrawal 子类型的事件时，会触发对应所有的 update listener，并将该事件传递给每个 EPL 语句的监听器。

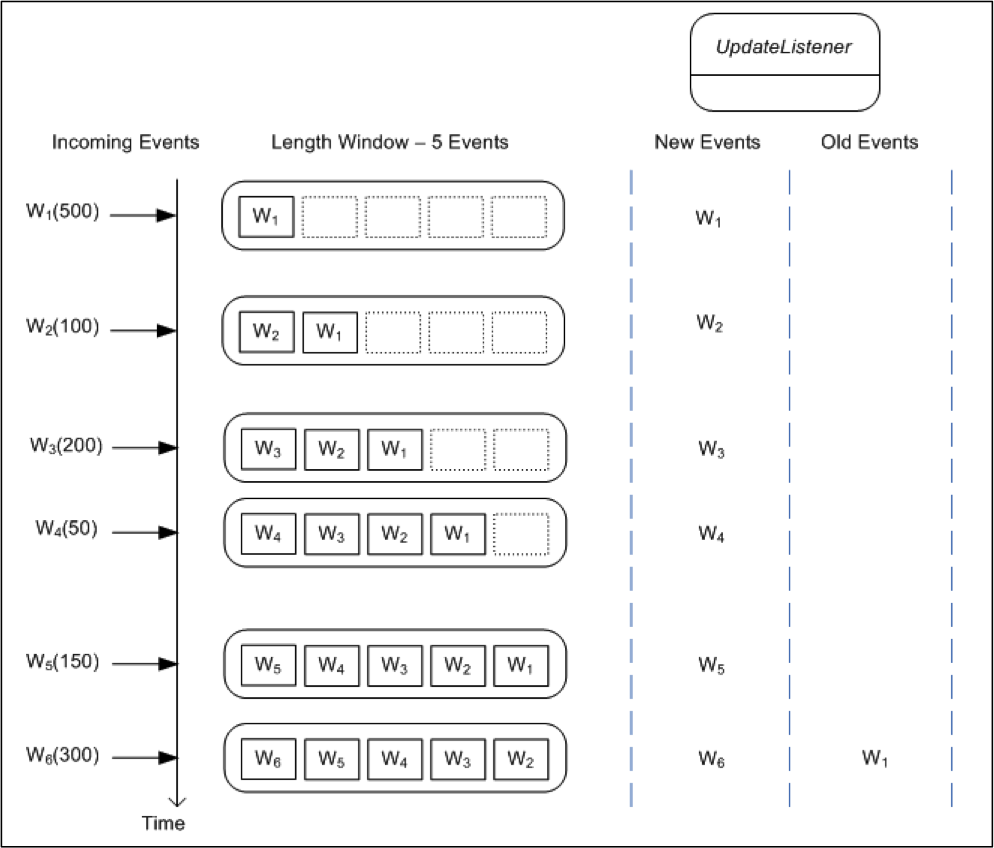

• Window Length

  队列窗口(length window)告知引擎只保留最新的 N 个事件，如：

    select * from Withdrawal.win:length(5)


  开放了一个大小为 5 的空间，可同时存放 5 个事件。

  引擎将所有接收到的事件，让入到一个长度为 5 的空间中，当空间满了之后，最老的事件将会置换出队列，新到的事件即为newEvent，置换出去的即为oldEvent。



  实际上这个EPL触发监听器都只能看到newEvents，看不到oldEvents。如果想看到oldEvents，EPL要改写一下：

    select irstream * from Withdrawal.win:length(5)


  默认情况下，Esper认为你只想让newEvents触发监听器，即istream(insert stream)。如果想让oldEvents触发监听器，那么为rstream(remove stream)。如果两个都想，那么为irstream。当然这个默认情况是可以配置的，以后会说到这个问题。

  当只用rstream时，过期的oldEvents是放松到newEvents中的。

3.2 Filter And Where-causes

EPL有两种过滤事件的方式：

• 过滤事件进入view（可以把view理解为一个窗口），即Filter。
• 让事件都进入view，但不触发UpdateListener，即Where子句。

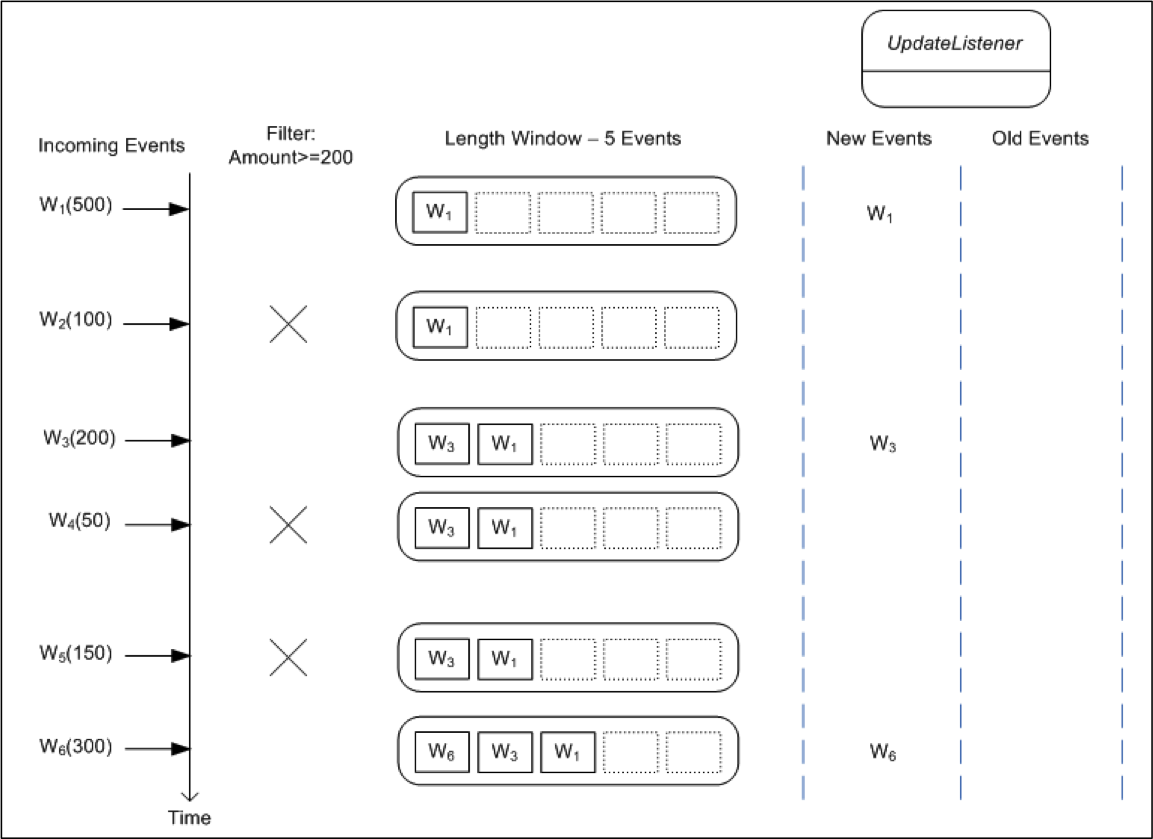

Filter：

select * from Withdrawal(amount>=200).win:length(5)

所有Withdrawal事件中，只有amount属性值 >= 200的才可以进入 win:length，且win:length大小为 5.

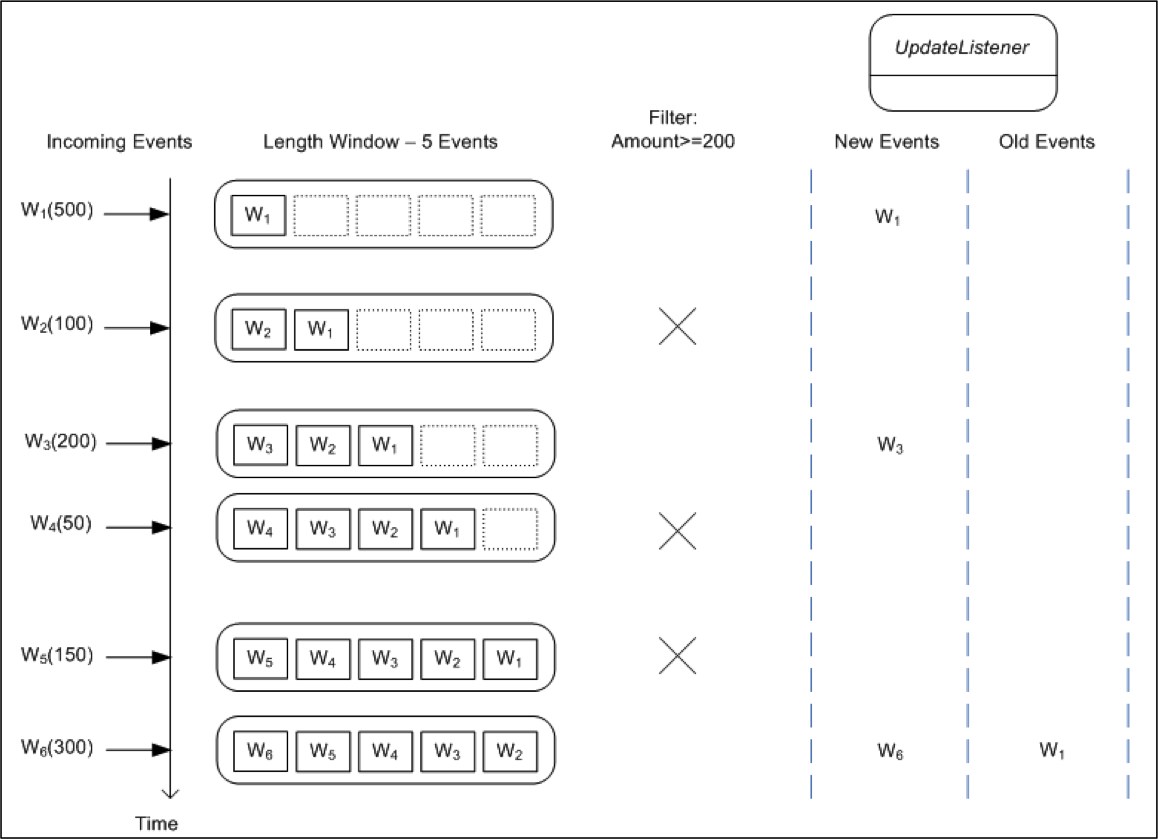

Where-causes：

select * from Withdrawal.win:length(5) where amount >= 200

所有Withdrawal事件中，都可以进入 win:length，且win:length大小为 5，只有amount属性 >= 200 的才可以触发 UpdateListener。

3.3 Time Windows

• Time Windows

  Time Window 是基于过去系统时间上的，一个移动的指定时间间隔的窗口，Time Window 能够限制一次查询中事件的个数，类似于length window。

  例如，要查询所有过去4秒的account中，amount大于1000的withdrawal的平均值，

    select account, avg(amount)
    from Withdrawal.win:time(4 sec)
    group by account
    having amount > 1000

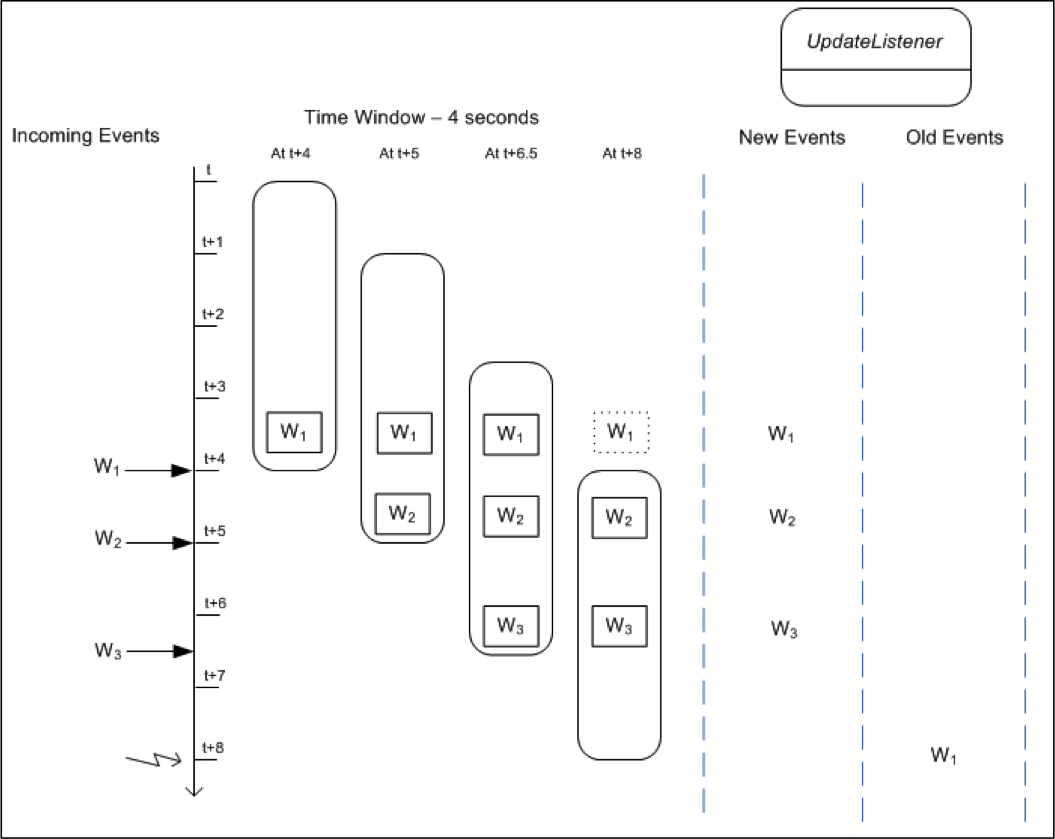

    select * from Withdrawal.win:time(4 sec)




  1. t+4 秒，W1到达并进入window，引擎将之反馈给 update listeners
  2. t+5 秒，W2到达并进入window，引擎将之反馈给 update listeners
  3. t+6.5 秒，W3到达并进入window，引擎将之反馈给 update listeners
  4. t+8 秒，W1离开time window，引擎将之作为一个old event 告知update listeners

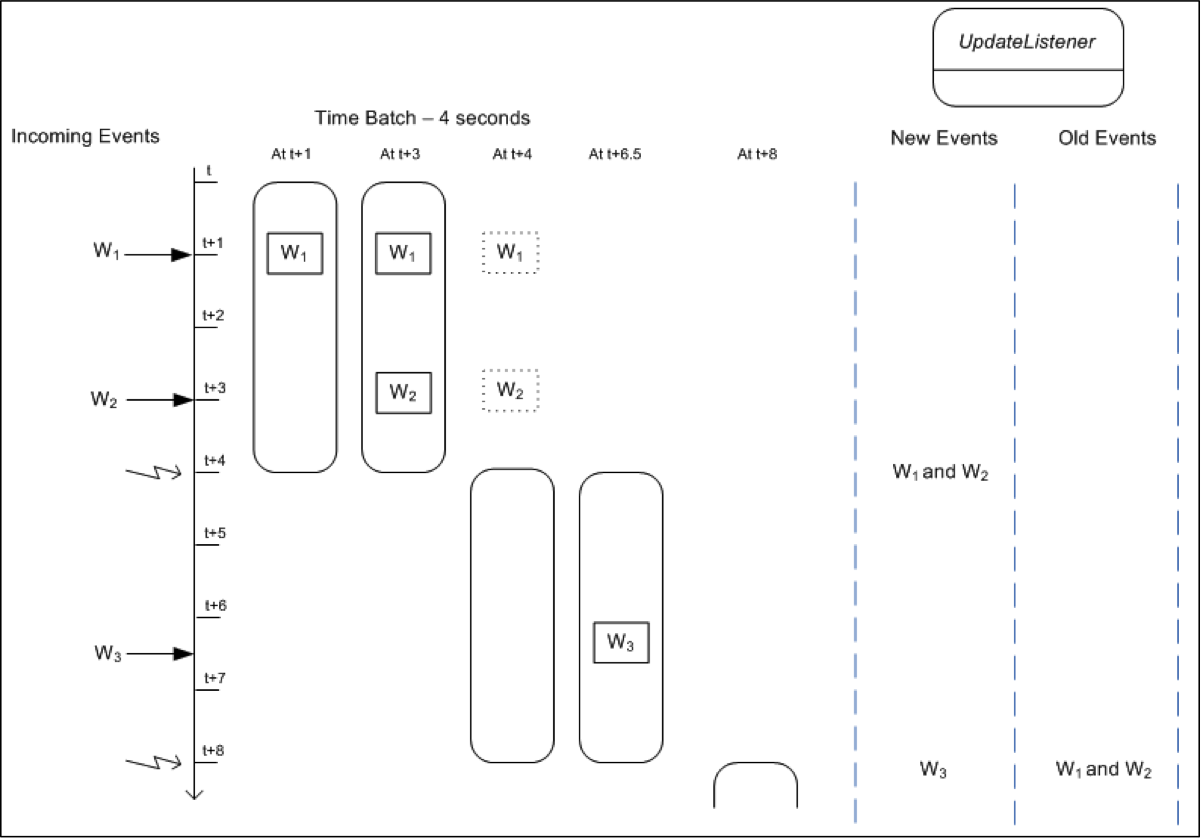

• Time Batch

  Time Batch视图缓存事件，并在每个指定的时间间隔更新时释放它们，可以理解为批、批处理。length batch也类似。

  例如，

    select * from Withdrawal.win:time_batch(4 sec)


  上述EPL语句可以理解为通过时间分批查询，每一批为4秒钟。



  1. 在 t + 1秒，W1 到达并进入batch，不触发调用 update listeners
  2. 在 t + 3秒，W2 到达并进入batch，不触发调用 update listeners
  3. 在 t + 4秒，引擎处理batch事件，并开始一个新的batch，引擎触发W1和W2给update listeners
  4. 在 t + 6.5秒，W3 引擎处理batch事件，并开始一个新的batch，引擎触发W1和W2给update listeners
  5. 在 t + 8秒，引擎处理batch事件，并开始一个新的batch，引擎触发W3给update listeners,并将W1和W2作为old data（前一个batch）发给update listeners

  收集1秒钟之内到达的Withdrawal事件，并在1秒钟结束之后，将之作为new events（insert stream）发送给引擎的每个listener，将上1秒的作为old events（remove stream）发送给每个listener

    select account, amount from Withdrawal.win:time_batch(1 sec)


  1秒内所有Withdrawal时间的amount属性和

    select sum(amount) as mysum from Withdrawal.win:time_batch(1 sec)


3.4 分组聚合

• IStream

  当聚合属性值发生改变的时候，聚合事件语句，能够通过聚合函数传递(post)remove steam（即聚合函数值也能作为触发update listener的条件）。

    select count(*) as mycount from Withdrawal having count(*) = 2   当接收到 2 个Withdrawal事件时，输出。

    select istream count(*) as mycount form Withdrawal having count(*) = 2


  istream 或 rstream关键字能被用来指定传递（post） new events 或 old events 给update listeners。上述语句，表示当且仅当第二个Withdrawal事件到达时，引擎才会调用listener；若istream改为rstream，则仅当第三个Withdrawal事件到达时，引擎才会调用listener。

• IR Stream

  监听器有两个参数 newEvents 和 oldEvents，newEvents 表示通常的计算结果，oldEvents 可以理解为上一次计算结果。默认情况下，newEvents 有值，oldEvnets 为null。

    select rstream * from Withdrawal   上述结果会将上一次的计算结果放入到 newEvents，而不是 oldEvents，且无法获取当前计算结果！

    select irstream * from Withdrawal   会将当前计算结果放入 newEvents，上次计算结果放入到 oldEvents。

    select istream * from Withdrawal
    select * from Withdrawal   会将当前计算结果放入newEvents，且无法得到上次计算结果，默认设置。


• Aggregate and Group

  不聚合、不分组

    select * from Withdrawal.win:time_batch(1 sec)   只有聚合，没有分组

    select sum(amount)
    from Withdrawal.win:time_batch(1 sec)   非聚合属性、聚合属性，当不分组

    select account, sum(amount)
    from Withdrawlal.win:time_batch(1 sec)   查询语句中的聚合属性、所有非聚合属性，都被group by语句列出。

    select account, sum(amount)
    from Withdrawal.win:time_batch(1 sec)
    group by account   查询 非聚合属性和聚合属性，仅用group by分组了部分属性。

    select account, accountName, sum(amount)
    from Withdrawal.win:time_batch(1 sec)
    group by account


未完待续…
