一、Vert.x-web介绍

1、Vert.x-web基于Vert.x core,可以非常简单的构建web应用程序的功能集;

2、Yoke从Node.js中的Express框架和Ruby世界中的Sinatra获得灵感出来的一个基于Vert.x 2.x框架;

3、Vertx-web并不是容器,Vert.x-Web强在设计,内部功能并不是完全嵌入,你只需构建应用时只需使用你所需要的;

4、Vert.x-web可以创建经典的服务器侧Web应用程序、RESTfulweb应用程序、实时(服务器推送)Web应用,或者其他你要实现的某种web应用,应用的类型完全由你决定;

5、Vert.x-Web非常适合编写RESTful HTTP微服务,但是Vert.x不强制你这样编写应用程序

二、Vert.x-web包含的功能

  • 路由(基于方法【get,post】,路径,等)
  • 路径的正则表达式匹配
  • 从路径中抽取参数
  • 内容协商
  • 请求体处理
  • 请求和响应体大小限制
  • Cookie解析与处理
  • 多部分表单(指有表单域和上传的表单)
  • 多部分文件上传
  • 子路由器
  • 会话支持——包括本地(粘滞会话)和集群(非粘滞)
  • CORS(跨区域资源共享)支持
  • 错误页处理
  • Basic认证
  • 基于认证的重定向
  • JWt (Java Web Toolkit) 基本认证
  • 用户/角色/权限认证
  • favicon(指浏览器页面上的图标)处理
  • 模板支持服务端渲染,支持下列模板引擎

      Handlebars
      Jade
      MVEL
      Thymelea
      Apache FreeMarker

  • 响应时间处理器
  • 静态文件提供,包括缓存逻辑和目录列表
  • 请求超时处理
  • SockJS支持
  • 事件总线桥
  • CSRF虚拟跨站请求
  • 虚拟主机

Vert.x-web的大多数特性被实现成处理器,所以要以自己编写。随着时间推移,会在vert.x-web中添加更多内容。我们将在此手册中讨认所有这些特性

三、Vert.x-web使用情况调查

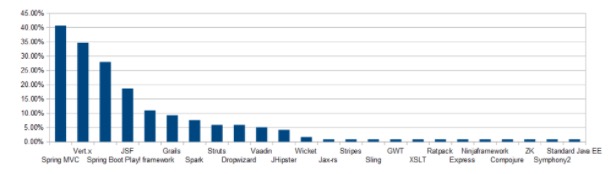

下图为来自网络调查所得web框架排行榜:

vert-web

可以看出Vert.x是仅次于spring MVC排名在第二位的框架,可见Vert.x的活跃程度已经很高了。

四、Vert.x-web简单例子

Vert.x-web本身包含功能很多,这里的例子只是通过Vert.x-web 基于java8(还有ruby、groovy、JavaScript等)实现简单的功能,详细例子可见:https://github.com/vert-x3/vertx-examples/tree/master/web-examples

简单Hello Word

	public class Server extends AbstractVerticle {
	  public static void main(String[] args) {
	    Runner.runExample(Server.class);
	  }

	  @Override
	  public void start() throws Exception {
	    Router router = Router.router(vertx);
	    router.route().handler(routingContext -> {
	      routingContext.response().putHeader("content-type", "text/html").end("Hello World!");
	    });
	    vertx.createHttpServer().requestHandler(router::accept).listen(8080);
	  }
  }

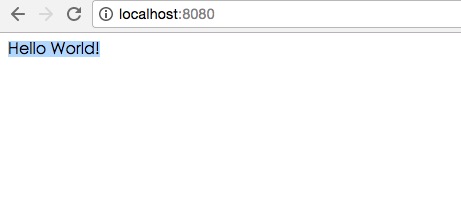

页面展现:

vert-http

简单rest微服务

	public class SimpleREST extends AbstractVerticle {
		  public static void main(String[] args) {
		    Runner.runExample(SimpleREST.class);
		  }
		  private Map<String, JsonObject> products = new HashMap<>();

		  @Override
		  public void start() {
		    setUpInitialData();
		    Router router = Router.router(vertx);
		    router.route().handler(BodyHandler.create());
		    router.get("/products/:productID").handler(this::handleGetProduct);
		    router.put("/products/:productID").handler(this::handleAddProduct);
		    router.get("/products").handler(this::handleListProducts);
		    vertx.createHttpServer().requestHandler(router::accept).listen(8080);
		  }

		  private void handleGetProduct(RoutingContext routingContext) {
		    String productID = routingContext.request().getParam("productID");
		    HttpServerResponse response = routingContext.response();
		    if (productID == null) {
		      sendError(400, response);
		    } else {
		      JsonObject product = products.get(productID);
		      if (product == null) {
		        sendError(404, response);
		      } else {
		        response.putHeader("content-type", "application/json").end(product.encodePrettily());
		      }
		    }
		  }

		  private void handleAddProduct(RoutingContext routingContext) {
		    String productID = routingContext.request().getParam("productID");
		    HttpServerResponse response = routingContext.response();
		    if (productID == null) {
		      sendError(400, response);
		    } else {
		      JsonObject product = routingContext.getBodyAsJson();
		      if (product == null) {
		        sendError(400, response);
		      } else {
		        products.put(productID, product);
		        response.end();
		      }
		    }
		  }

		  private void handleListProducts(RoutingContext routingContext) {
		    JsonArray arr = new JsonArray();
		    products.forEach((k, v) -> arr.add(v));
		    routingContext.response().putHeader("content-type", "application/json").end(arr.encodePrettily());
		  }

		  private void sendError(int statusCode, HttpServerResponse response) {
		    response.setStatusCode(statusCode).end();
		  }

		  private void setUpInitialData() {
		    addProduct(new JsonObject().put("id", "prod3568").put("name", "Egg Whisk").put("price", 3.99).put("weight", 150));
		    addProduct(new JsonObject().put("id", "prod7340").put("name", "Tea Cosy").put("price", 5.99).put("weight", 100));
		    addProduct(new JsonObject().put("id", "prod8643").put("name", "Spatula").put("price", 1.00).put("weight", 80));
		  }

		  private void addProduct(JsonObject product) {
		    products.put(product.getString("id"), product);
        }
  }

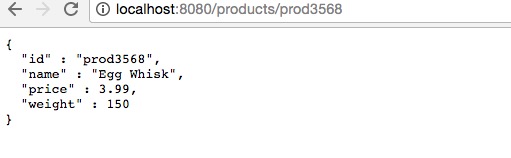

页面展现:

vert-rest
